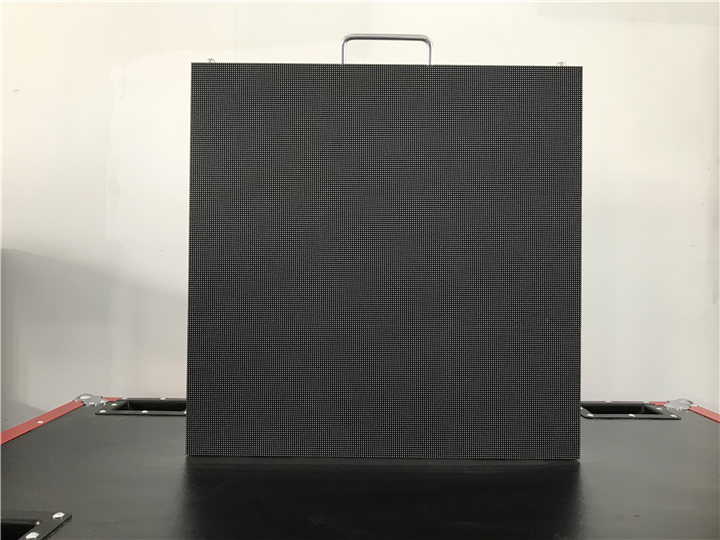

Brand: Vista
Pixel pitch: 1.667mm 1.87mm, 2.5mm
Environment: Indoor Fixed installation
Pixel configuration: 1R1G1B SMD1010
Cabinet size: 480x480x80mm
Brightness: 800nits
Parameters
Value
Unit
Model
UAII2.5
Pixel pitch
2.5
mm
Pixel configuration
SMD2020
Pixel density
160,000
pix/㎡
Brightness
1000
nits
Module dimensions (W×H)
160*160
0.5*0.5
feet
Cabinet dimensions(WxHxD)
480*480*80
1.57*1.57*0.26
Cabinet material
Die Cast Aluminum
Cabinet Weight
6.5
kg
Cabinet resolution
192*192
pixels
Refresh rate
≥1920
Hz
Gray scale per color
8192
level
Colors
549 Billion
Viewing angle(H/V)
160/140
deg.
IP rating(Front/Rear)
IP31/IP21
MPC
140
W/cabinet
VPC
60
Input voltage(AC)
110~240
V
Operating temperature
-10 ～40
℃
Operating humidity
10%~90%
Source compatibility(with video processor)
AV, S-Video, VGA, DVI, HDMI, SDI, DP
